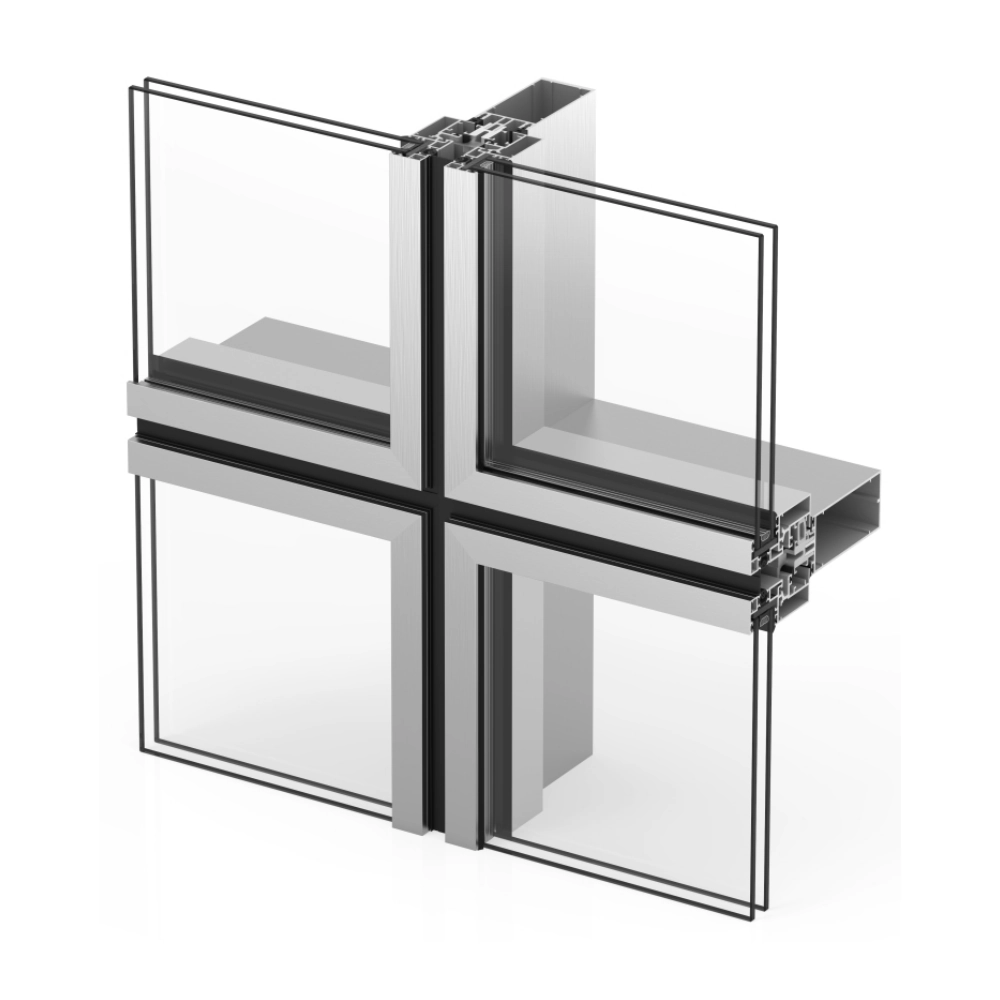

The glass is mechanically fixed to a perimeter frame using an external decorative profile, without the need to apply structural silicone as in the ST 52 system.
It also features an open-joint facade exterior aesthetic, in this case with an aluminum frame on the glass. The EPDM gasket installed around the entire perimeter of each module acts as the primary weather barrier. The joint seal is achieved by overlapping the gaskets.
Thermal Transmittance Coefficient
Uw from 0.8 W/m²K.
Profile Thickness
Mullion 2.1 and 3 mm | Transom 2.1 mm.
Section
Mullion 52 mm | Transom 52 mm.
Max. Glass Thickness
6-28 mm.
Max. Sash Weight
Top-hung window: 180 kg | Fixed: 350 kg.
Thermal Break
18 mm.
Opening Options
Concealed top-hung window.
